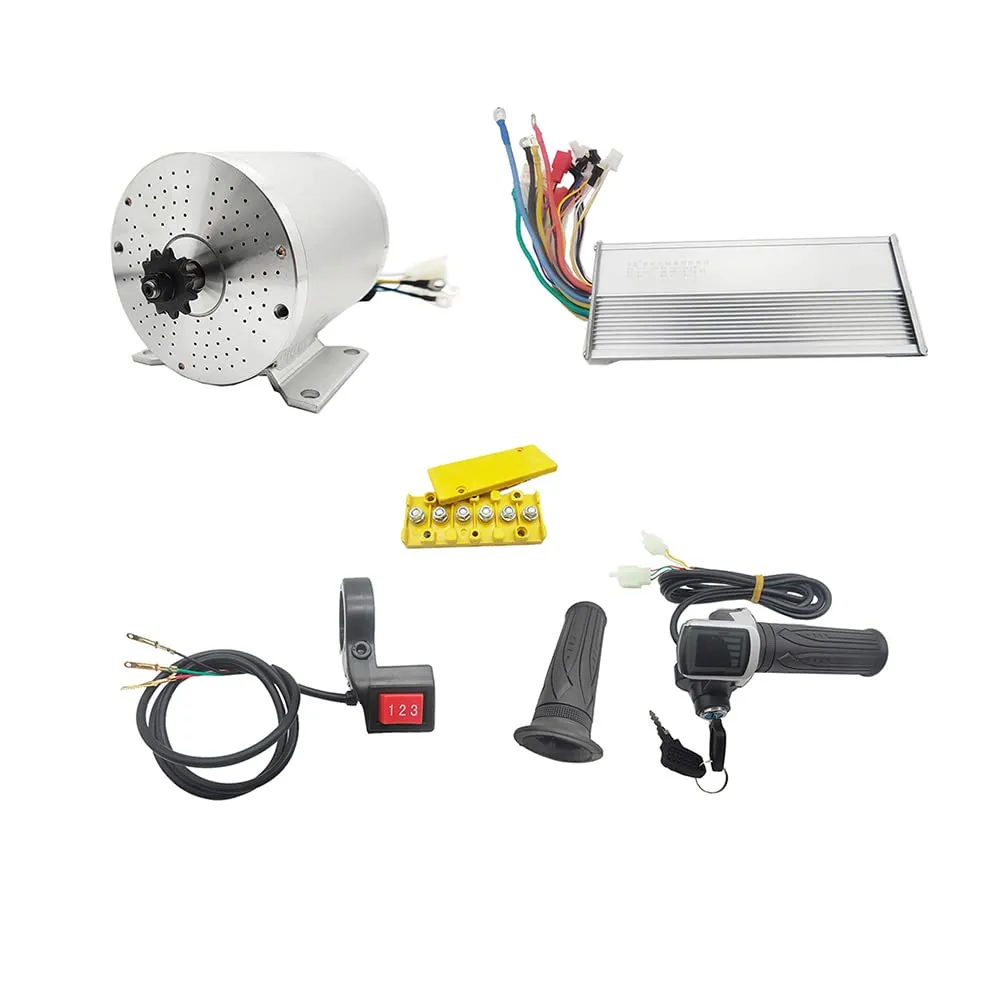

- Brushless DC Motors: Brushless DC motors are generally quieter, smaller, and lighter than brushed motors. The 36V 1000 W motor output makes it more efficient to generate electricity, resulting in longer battery life. The 40CR motor head and high-quality aluminum housing are sturdy and reliable.
- Super-fast revs: This 36-volt brushless motor has high torque and can reach super-fast revs of 3100 rpm, ensuring high work efficiency.
- Forward and Negative: You can control the motor to switch clockwise or counterclockwise rotation by connecting the reverse gear function of the controller.
- Convenient Speed Control: This 1000 W DC motor is equipped with a speed controller to provide speed control in ideal operation. The controller also has a 3-speed function, which can realize low-speed, medium-speed, and high-speed shifting.
- Easy Installation: This 36 V brushless DC motor has a compact body, light weight, easy to carry and operate, compatible with electric scooters, electric bicycles, electric bicycles, electric scooters, electric motors, motorcycles, small electric motors, etc.
About Motor:
1.Model:MOTOR MY1020
2.Motor Type: High-Speed BLDC brushless Motor
4.Out put /W: 1000W.
5.Rated Speed:3100RPM/MIN
6.Rated Current:27.7A
7.Weight:3.5kg
8.Shaft diameter:12mm
9.Rated Torque:3.5 N.m
10.Applicable: Electric Scooter,Ebike,Folding Bike,Small E-Moto,machine,MIni Electric Car ,DIY
11.Installation: Center,MID DRIVE SYETEM.
12.Sprocket/Chain: T8F Sprockt /Chain.
13.Speed:30-50km/h
36V-48V 1000W controller can work with hall connect sensor or not connect hall sensor
Rated Voltage: 36V/48V
Low Voltage : 31V/42V±0.5V
Rated Power: 1000W
Limit Current:30A
1.self-learning
2.cruise line
3.reverse line
4.high brake
5.low brake
6.3-speed (low/middle/high)
7.throttle
8.electric lock
9.hall line
10.LCD instrument line
11.Anti-theft power supply
12.Anti-theft signal
13.battery (red battery , black battery-)
14.motor
15.pointer meter line
1.connect the motor line (color to color，if motor without hall line, don't need connect hall line）
2. connect the battery line(red:battery , black:battery-)
3. connect the controller throttle line to throttle, controller electric lock connect to throttle electric lock
（if throttle not have electric lock,the electric lock 2 wires of the controller can be docked together）
4.docking the two self-learning lines, the wheel will forward or reverse.
(1.if wheel forward ,Separate the self-learning line.
2.if wheel reverse, Separate the self-learning line. Docking the self-learning line again，if wheel forward ,Separate the self-learning line.) Self-learning is to adapt to the supply voltage
5.other functions can be connected as needed.
- Package Dimensions : 13.74 x 11.77 x 8.62 inches; 7.28 Pounds
- Date First Available : March 16, 2022
- Manufacturer : MOTOBERRY
