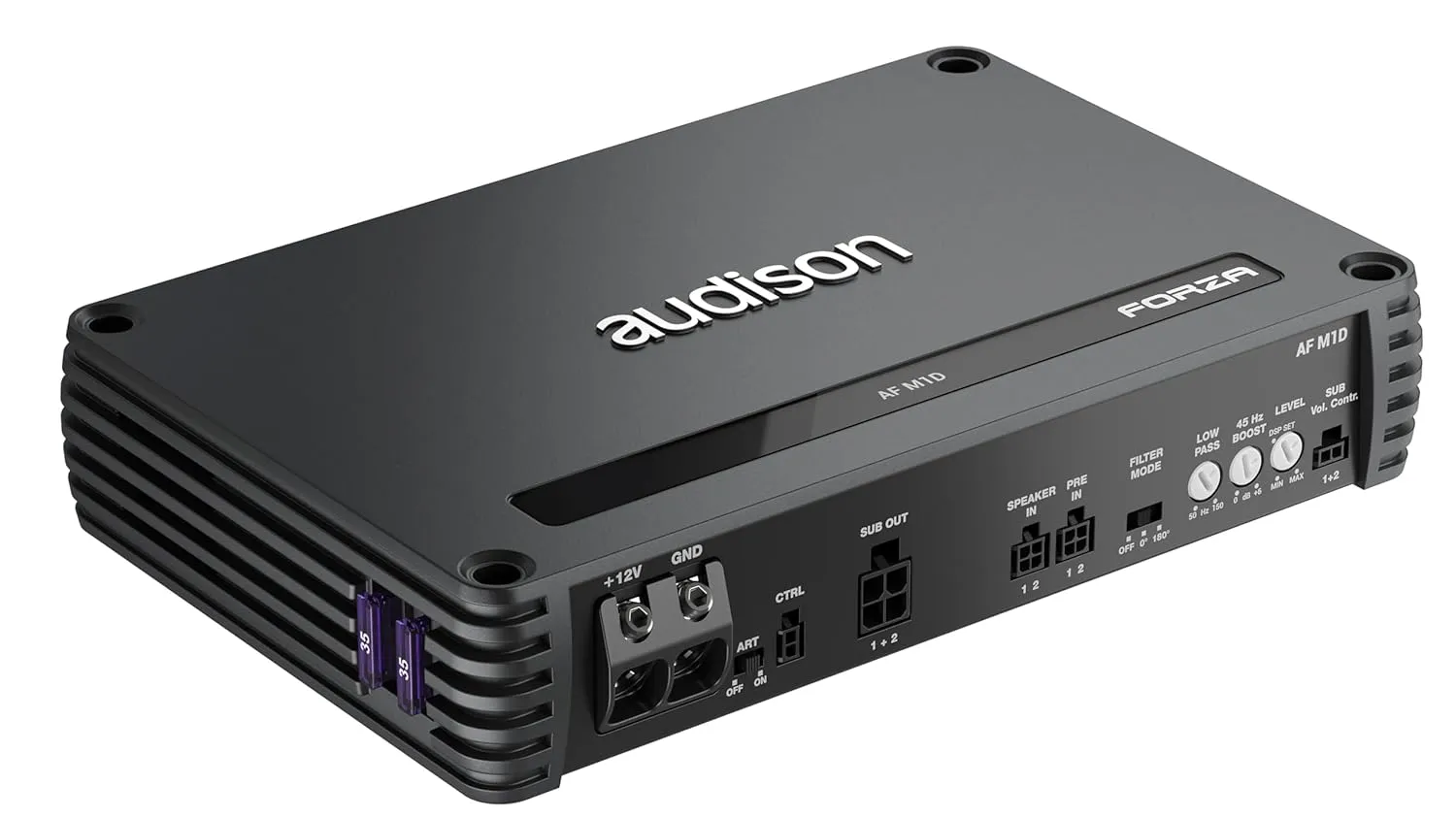

- AF M1DAmplifier | 1000 W total power | 1 x 1200 W @ 1ohm | D-class AF D companion amplifiers are designed to add powerful amplifier channels to AF bit amplifiers. A plug-and-play Input harness is included to make the connection to AF bit amplifiers straightforward. AF D amplifiers are also perfect for use with systems controlled and managed by a standalone bit processor, such as a bit One HD Virtuoso.
- AF M1D boasts one high-fidelity amplified channel 600W @4Ω*, 1000W @2Ω*, and 1200W @1Ω* with the audiophile sound of the latest generation Audison D-Class technology. Higher switching frequencies, steeper filtering, and higher-tolerance components deliver sound above and beyond the expectation of Class D – in an amazingly compact package!
- AF M1D is the only one in the AF D family that can be used also in standalone mode, thanks to a set of manual controls: - adjustable (and defeatable) low-pass 4th-order crossover filter - 0-180° polarity/phase switch - 45 Hz Bass Boost adjustment Combine these functions with the ART DC turn-on from high-level Inputs, the USS speaker-input loading, and the optional VCR-S2 level knob, and this amp can be used to add subwoofers even in systems which lack an Audison AF bit amplifier! *Output Contin
AF M1D | Audison Amplifier | 1000 W total power | 1 x 1200 W @ 1ohm | D-class FEATURES: Improved audio performance and power thanks to the latest generation of ADT (Audison D-Class) technology Unbeatable power/volume ratio up to 0.68 W RMS/cm³ reaching 81% of efficiency Hi-Res compatibility performance, with an extended audio band up to 40 kHz SPECIFICATIONS: AMPLIFIER TECH DATA: Channels 1 Class D-Class Hi Level Input Yes Low Level Input Yes Digital Input No Power supply voltage / fuse 11 ÷ 15 VDC Operating power supply voltage 6.5 ÷ 17.5 VDC Idling current 1.3 A Idling current when off 0.005 mA Consumption @ 14.4 VDC, 2Ω, Max Musical Power 65 A Remote OUT 6.5 ÷15 VDC (150 mA) Remote IN 4 ÷15 VDC (1 mA) ART - Automatic Remote Turn on/off from OUTPUT BTL speakers (Selectable) 1.5 VDC AMPLIFIER STAGE: Distortion - THD @ 100 Hz, 4Ω, 70% Rated Power 0.03% Bandwidth A (-3 dB, 2 VRMS, 4 Ω): 10 Hz ÷ 500 Hz S/N ratio A (A weighted @ 1 V): 105 dBA Damping factor A (100 Hz, 4Ω, 2 VRMS): 125 Input sensitivity Pre-In 0.6 ÷ 6 VRMS Input sensitivity Speaker-In 2.2 ÷ 22 VRMS Total Power RMS 1000 W Minimum load impedance 1 Ω Output Power (RMS) @14.4 VDC, 1% THD 1Ch @ 4Ω: 600 W 1Ch @ 2Ω: 1000 W 1Ch @ 1Ω: 1200 W Adjustable Crossover Yes CEA SPECIFICATIONS: Output power @ 4Ω, 1% THD N, 14.4 V 600 W SN ratio (ref. 1W output) 81 dBA INPUTS Input Type Pre-In / Speaker-In Filter Pass A Full / Low-Pass 50 ÷ 150 Hz @ 24 dB/Oct. Inputs/Outputs Phase (0 ÷ 180 ) deg Inputs/Outputs Bass Boost 45Hz (adjustable) - (0 ÷ 6) dB Remote Sub Volume ±12 dB
- Product Dimensions : 9.5 x 1.85 x 6.14 inches; 4 Pounds
- Date First Available : January 11, 2024
- Manufacturer : Audison
