- 3000N Heavy Duty: The 12V linear actuator is equipped with a strong 3000N motor. With 5.9 inch (150mm) stroke length, 5 mm/s travel speed, this 12 volt actuator could enable much bigger thrust force tasks compared to other 1500N actuators. Built-in limit switch that can stop at any position, it will automatically stop when the linear actuator reaches the top. Moreover, the actuator base adopts the all built-in design, which is more stable compared with ordinary design
- Low Noise: The electric actuator 12V is made of aluminum alloy material, high hardness, corrosion resistance and quakeproof. The internal gear of the actuator motor is upgraded to high-strength engineering plastic worm gear with low noise (≤50dB sound), large self-locking force, and strong durability. The upgrade construction makes the actuator motor high stability and long service life
- Flexible Motion: The linear actuators kit comes with 3 position & momentary reverse polarity toggle switch, and push the switch to the"UP" or "DOWN", realizing the flexible retract & extend of the liner actuator. Furthermore, as the switch is released, the 12V linear actuator will be locked at your wanted position. Therefore, the motion control can be easily and safely implemented to meet your specific needs
- Wide Application: This heavy duty linear actuator is robust and can withstand harsh working environments, enabling automation in home, outdoor, medical, agricultural and other fields. The electric actuator could perform tasks much efficiently and safely compared to manual operation. All in all, this actuator 12V could widely applied to window opener, electric sofa, electric wheelchair, electric nursing bed, automatic door opener, industrial electric lifting system, etc

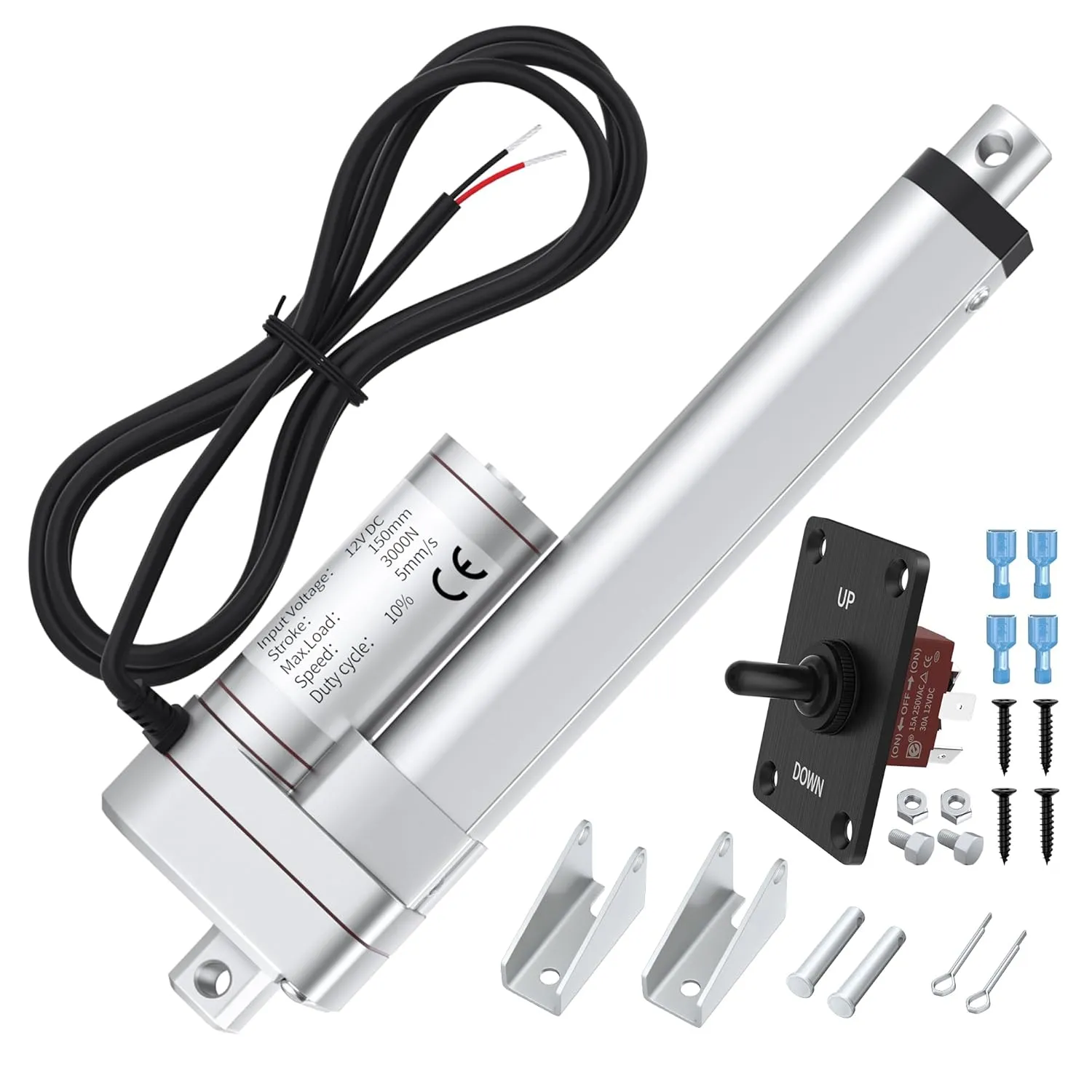

- With Controller: The package of this electric actuator 12V will also includes a polarity reversing switch to meet special need. In addition, the switch will also be equiped with all necessary parts for use, such as mounting panel to adapt different hole size, waterproof cap to make it suitable for outdoor use, terminal connectors to make it convenient for connecting, which saves much energy and time for you to search the parts you need individually

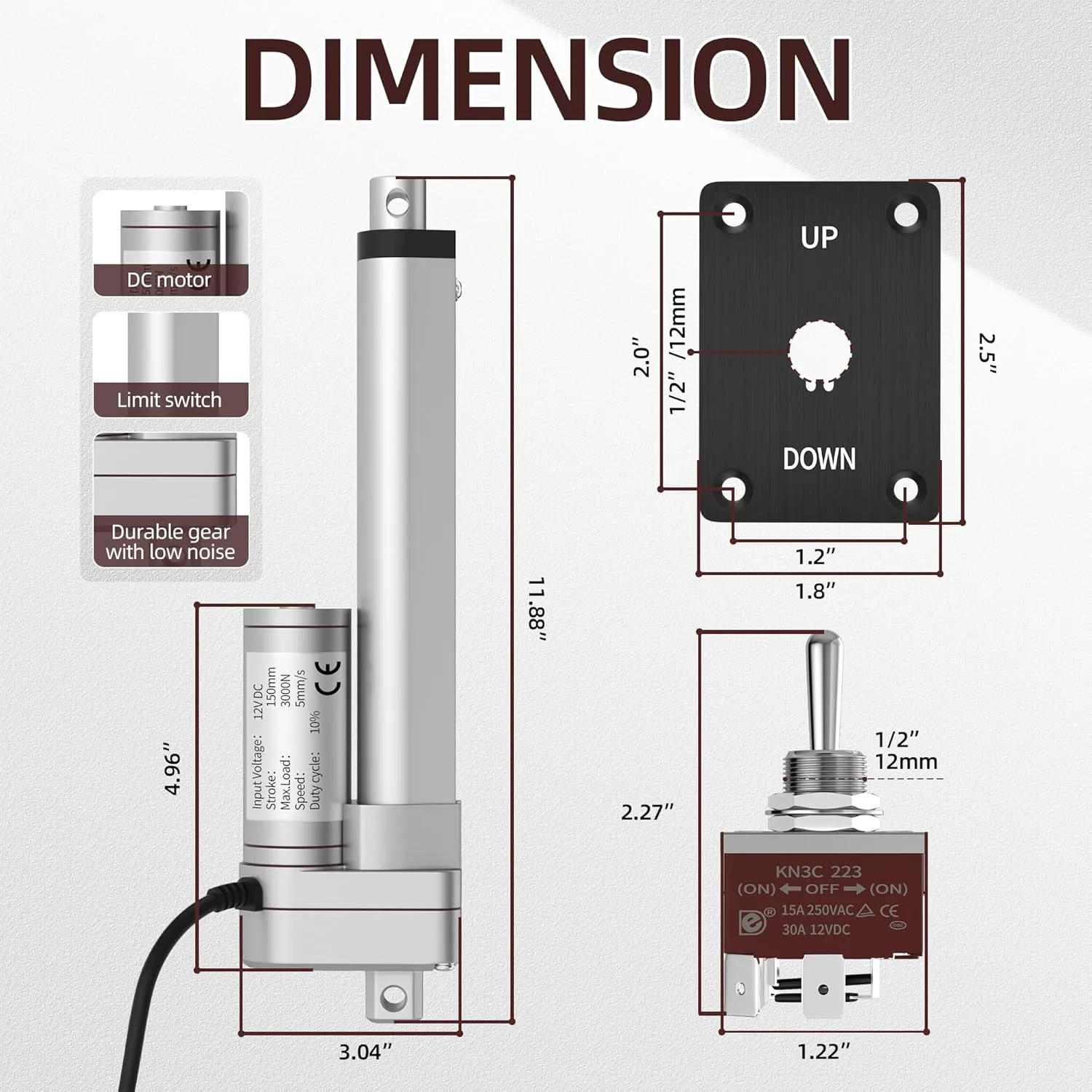

- Specification: stroke length: 6 inch(150mm); travel speed: 0.2in/sec(5mm/sec); retracted length: 260mm(10"); extended length: 410mm(16"); current draw: 4 amps.
- Package Dimensions : 14.17 x 3.74 x 2.09 inches; 3.06 Pounds
- Date First Available : December 7, 2023
- Manufacturer : RVMARINEPAT
- Country of Origin : China
