- [ SPECIFICATIONS ]: Model: EX-WK-S612-K | Motor Power: 600W | Voltage: 12V DC | Current Draw: 20A | Circuit Breaker: 60A | Waterproof Rating: IP66 | Max Pull: 1200 lbs (540 kg) | Working Load: 400 lbs (180 kg) | Drop Speed: 115 ft/min (35 m/min) | Chain: 1/4" HT G4 | Rope: 1/2" (12mm) 3-Strand | Weight: 28.7 lbs (13 kg) | Housing: 316 Stainless Steel

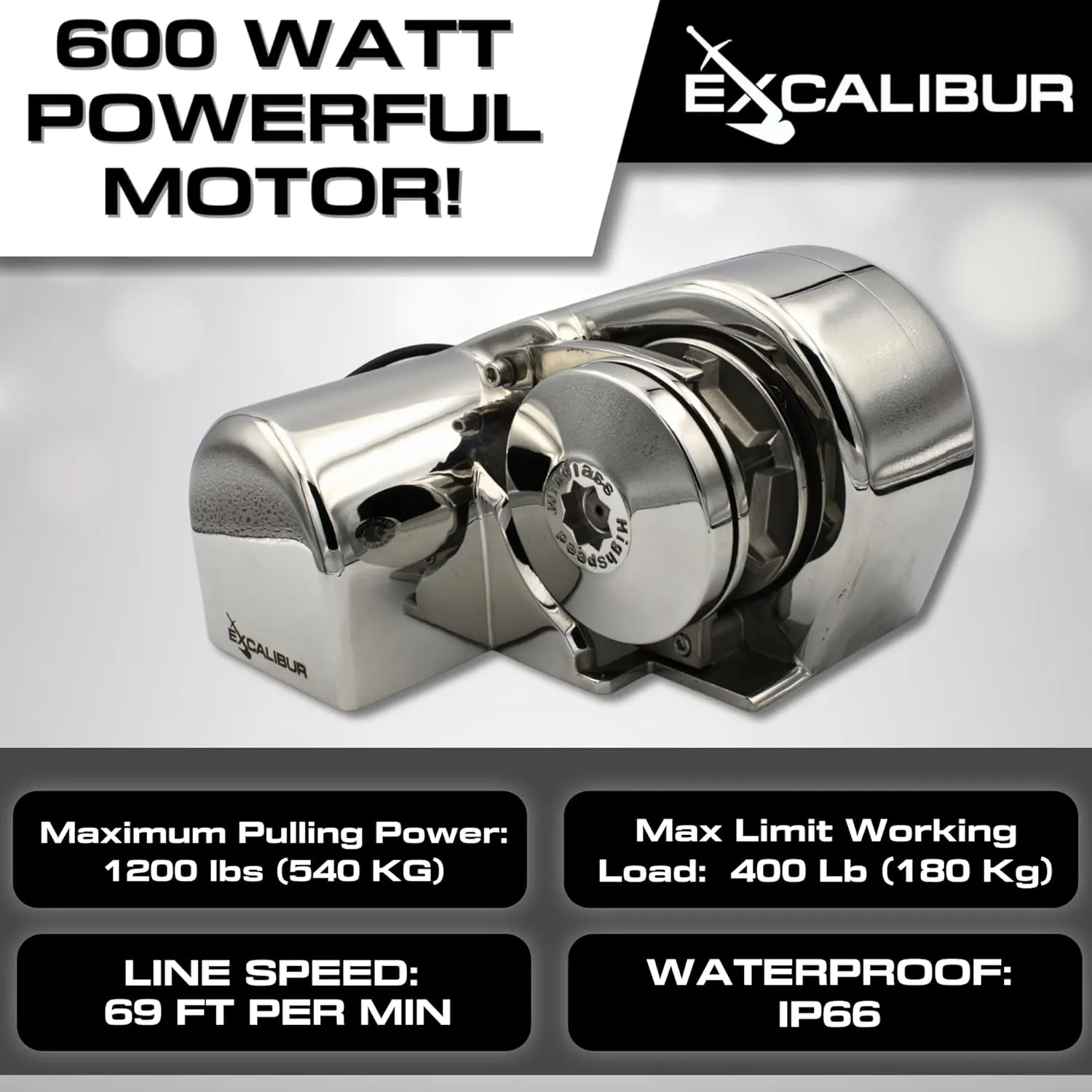

- [ HIGH-PERFORMANCE MOTOR ]: Outfitted with a powerful 600W motor, this windlass handles intense anchoring tasks with ease. It provides up to 1200 lbs of max pull strength and a 400 lb working load, ensuring confident performance in strong currents, rocky bottoms, or high-wind conditions.

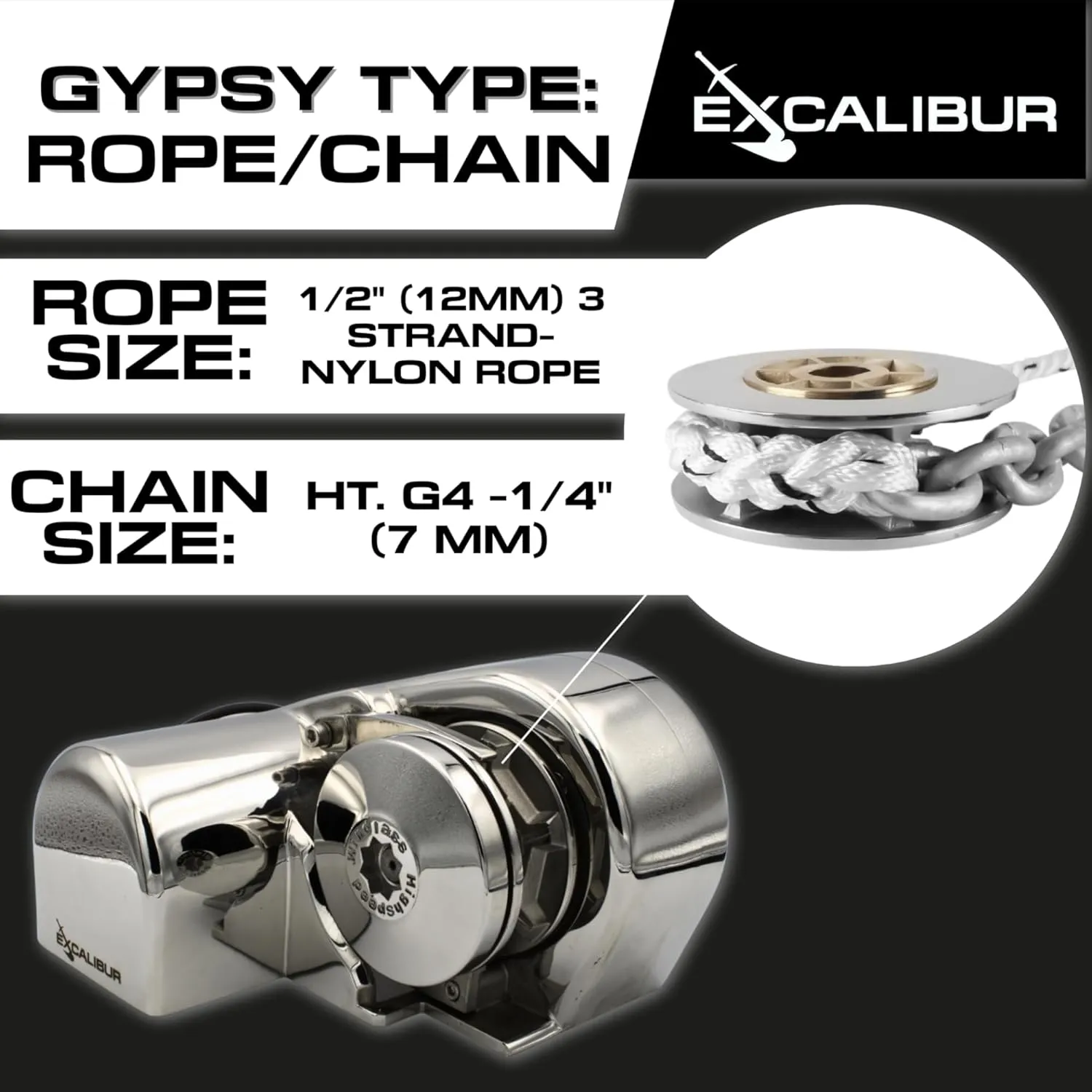

- [ GYPSY COMPATIBILITY ]: The built-in gypsy offers seamless operation with both 1/4 inch HT G4 chain and 1/2 inch 3-strand rope. This dual-compatibility setup supports custom anchoring systems, giving you more flexibility in equipment choice and better handling across diverse marine environments.

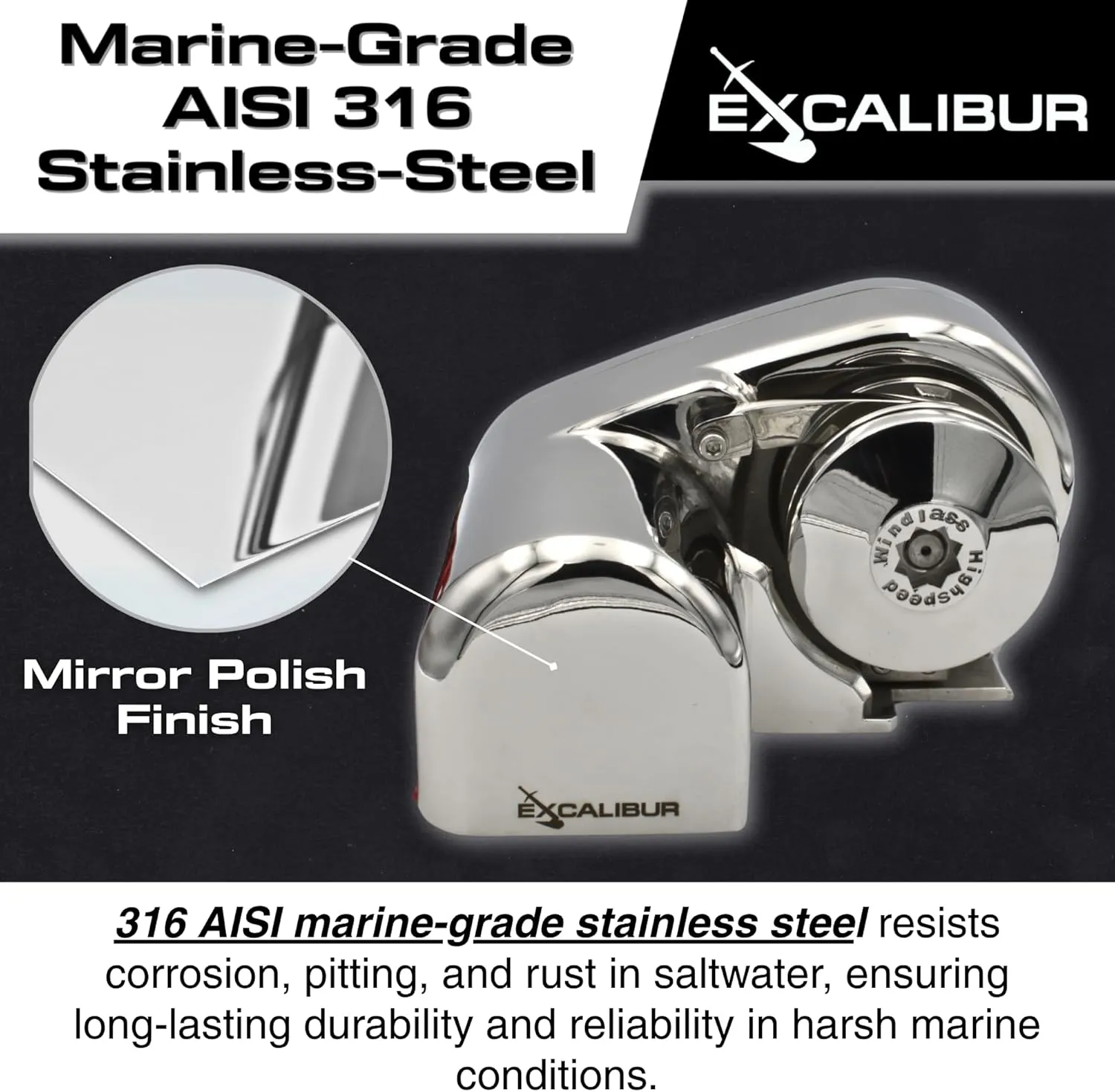

- [ 316 MARINE-GRADE STAINLESS STEEL HOUSING ]: Constructed from high-polish AISI 316 stainless steel, this windlass resists rust and pitting even in corrosive saltwater. The durable housing absorbs load strain and ensures the longevity of moving parts during repeated anchor deployment and retrieval.
- [ EFFICIENT LINE SPEED ]: This unit retrieves anchor line at a rapid rate of 115 feet per minute (35 meters per minute), reducing anchoring time and boosting responsiveness. The smooth mechanical operation also minimizes jamming and wear on the motor during frequent use.
- [ WATERPROOF IP66 MOTOR ]: Designed for marine reliability, the motor is IP66-rated to protect against high-pressure water jets and dust ingress. Whether facing rain, sea spray, or deck washdowns, the sealed housing keeps internal components safe and operational.

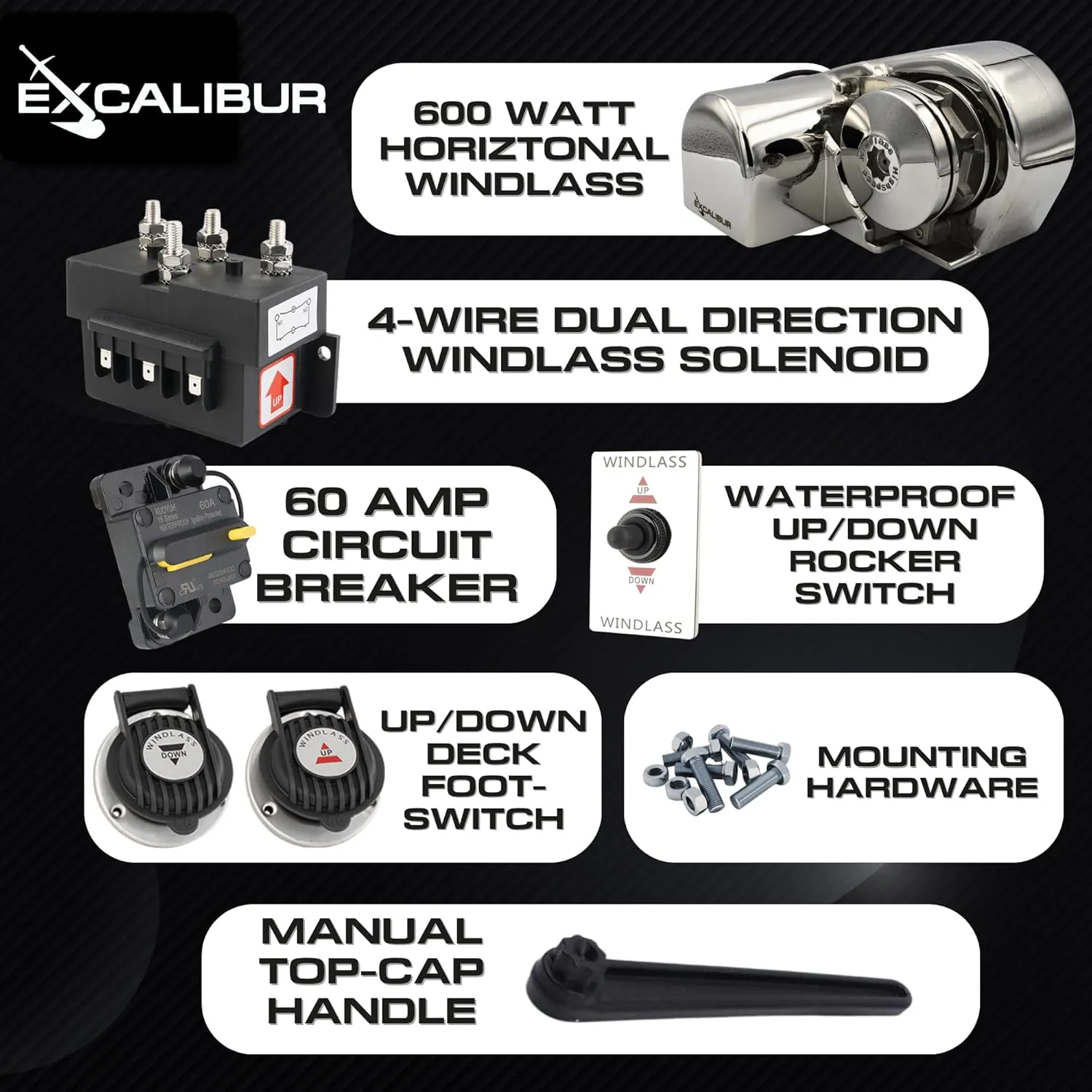

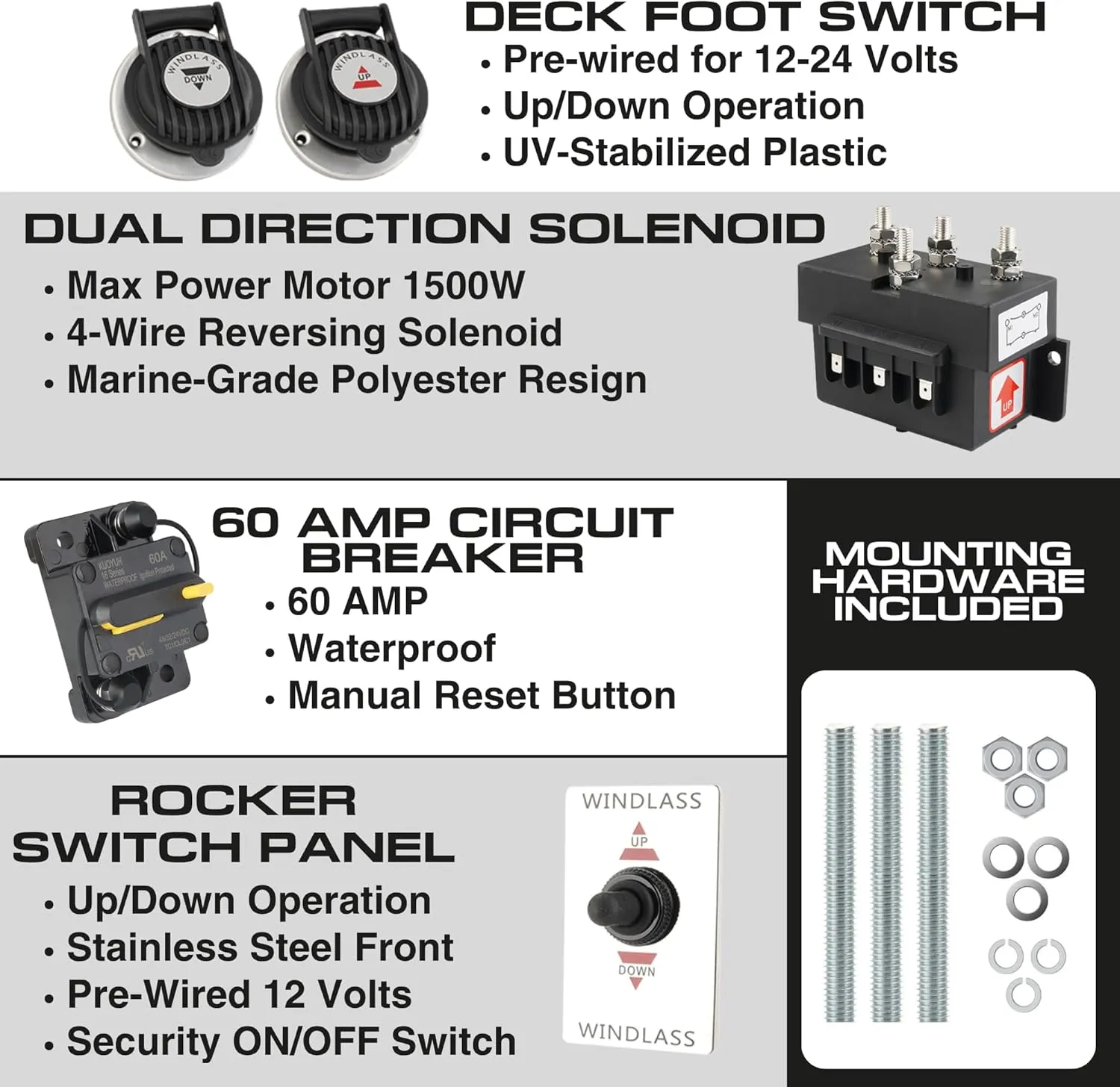

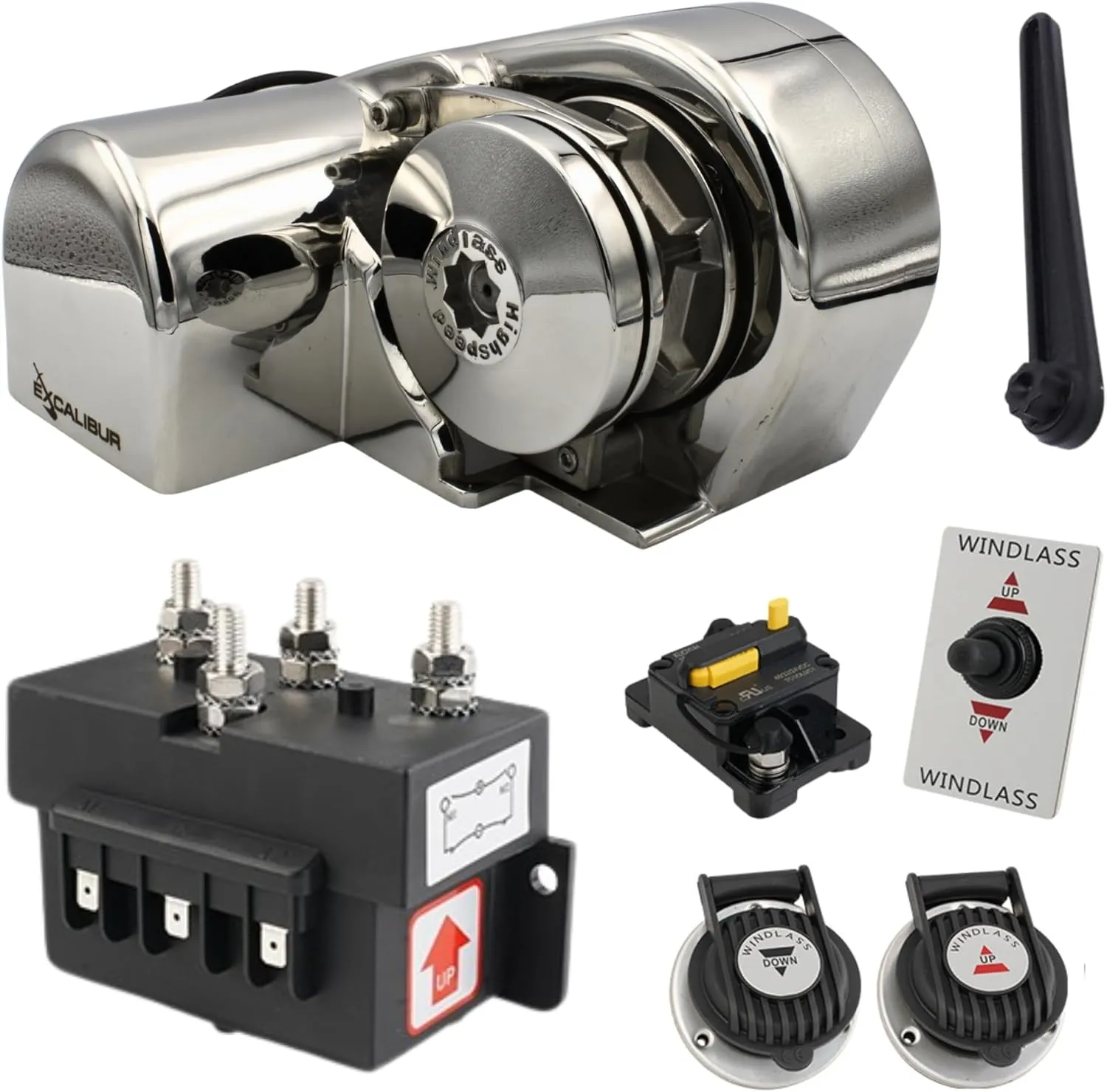

- [ INCLUDED COMPONENTS ]: This complete anchor system includes a horizontal windlass with a 600W 12V motor, chain and rope gypsy, 4-wire solenoid, 60A circuit breaker, up/down foot switch, rocker switch, manual top-cap handle, owner manual, mounting hardware, and template for installation.
- [ EASY ABOVE-DECK INSTALLATION ]: Designed for surface mounting, this horizontal windlass is perfect for decks over 2 inches thick or with tight space constraints. Includes all hardware and templates to streamline setup for DIY and professional installers alike.
The EXCALIBUR Horizontal Windlass Anchor System is a rugged, marine-grade anchoring solution for boats up to 40 feet (12 meters) in length. Designed with above-deck installation in mind, it delivers powerful performance and simplified setup for vessels with limited space below deck or thicker topside structures.
With a high-efficiency 600W motor, this windlass achieves up to 1200 lbs of pulling power and a 400 lb working load limit. The gypsy accommodates both 1/4 inch HT G4 chain and 1/2 inch (12mm) 3-strand rope, offering versatile anchoring configurations. Its polished AISI 316 stainless steel housing ensures long-term resistance to saltwater corrosion and marine stress.
An IP66-rated motor, fast 115 ft/min chain speed, and full installation kit make this windlass ideal for boaters seeking speed, durability, and reliability. Whether you're anchoring in heavy current or tight coastal moorings, EXCALIBUR delivers consistent, hassle-free performance every time.
